Billy

Based on a design by Arthur Koppel and found in large numbers throughout Europe, locomotives were also built to this design by Andrew Barclay in Scotland and found on narrow gauge lines around the British Isles. This really is a locomotive that will look at home on any railway around the world.

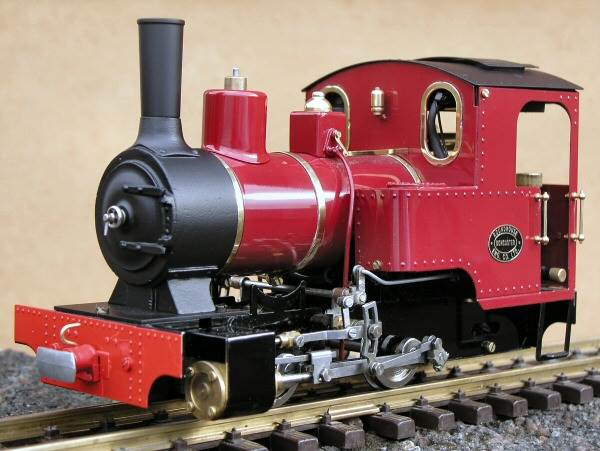

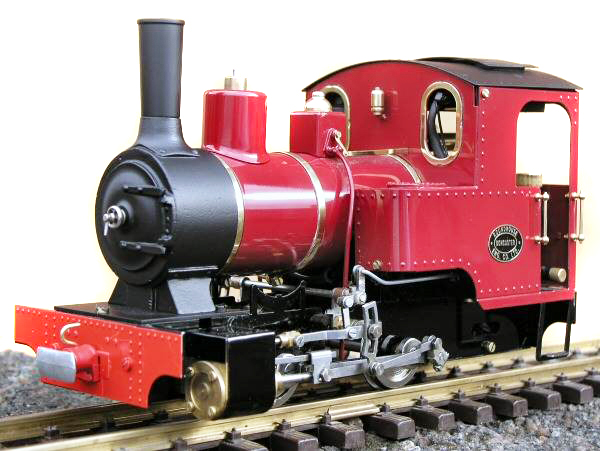

Billy Koppel locomotive Roundhouse for sale 01-Optimized1

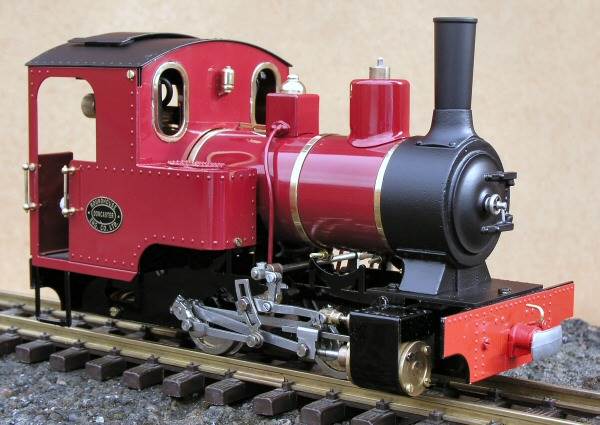

Billy Koppel locomotive Roundhouse for sale 02-Optimized2

Technical specifications for ‘Billy’

0-4-0 outside framed chassis with two double acting slide valve cylinders.

Simplified Walschaerts valve gear.

Internal gas firing using our ‘FG’ type burner.

Controls fitted as standard are :- steam regulator, safety valve, pressure gauge, displacement lubricator, gas regulator and reversing gear.

Exhaust Enhancer fitted as standard.

Overall dimensions (loading gauge), length 285mm, width 125mm, height 156mm

Weight 2.90 Kg. (with r/c).

Full radio control is available for both regulator and reversing valve gear.

The wheels are adjustable between 32mm and 45mm gauge.

Also available with insulated wheels



For any more information please don’t hesitate to give us a bell on 07816 963463



Manual £1275

Radio Controlled £1503
