Fowler

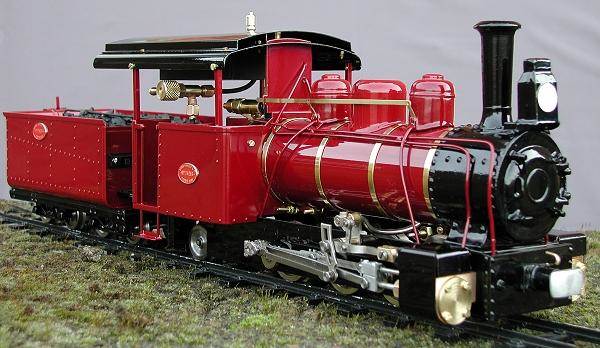

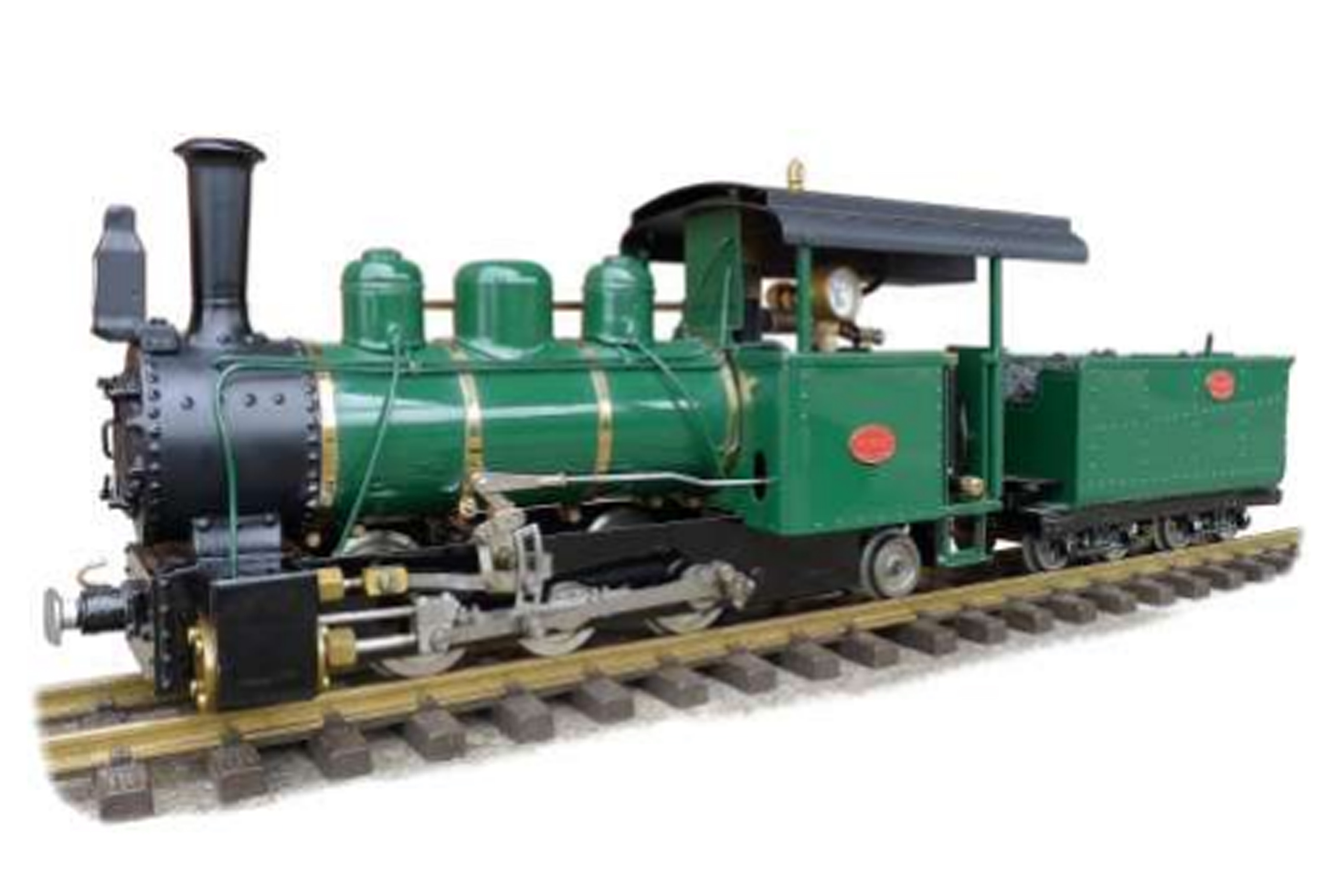

This is a model of works number 16255 built in 1924 by John Fowler & Co. Ltd. of Leeds for the Inisfail Tramway in Queensland, Australia. The model features a wealth of detail, particularly rivet and pipework. On Radio Controlled models, miniature servo’s are used to keep the cab as uncluttered as possible.







Technical specifications for ‘Fowler’.

0-6-2 outside framed chassis with two double acting slide valve cylinders.

Simplified Walschaerts type valve gear.

Internal gas firing using our ‘FG’ type burner.

Controls fitted as standard are :- steam regulator, safety valve, pressure gauge, displacement lubricator, gas regulator and reversing gear.

Exhaust Enhancer fitted as standard.

Overall dimensions (loading gauge) length 555mm, width 120mm, height 155mm.

Weight loco – 3.30Kg, tender – 1.25 Kg (with r/c).

Full radio control is available for both regulator and reversing valve gear.

A gauge conversion kit is available separately to allow changing between 32mm and 45mm gauge. Please state gauge when ordering.

Available in any standard ROUNDHOUSE colour.

Also available with insulated wheels.



For any more information please don’t hesitate to give us a bell on 07816 963463

Manual £1555

Radio Controlled £1775
