Katie

Katie is of typical narrow gauge saddle tank locomotive design. Though not a model of any particular engine, she draws inspiration and features from a number of famous builders like Hunslet, Bagnall and Pecket etc.



Technical specifications for ‘Katie’

0-4-0 outside framed chassis with two double acting slide valve cylinders operated by simplified Walschaerts type valve gear.

Exhaust enhancer

Internal gas firing using the ROUNDHOUSE ‘FG’ gas system

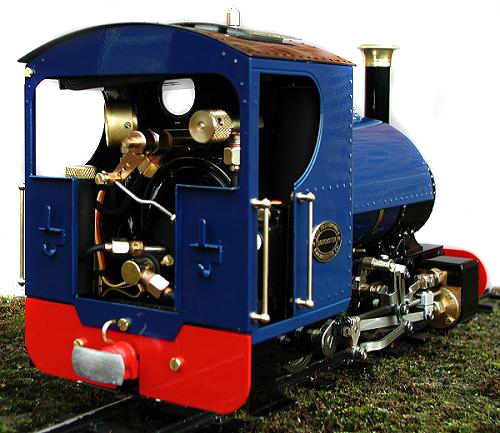

Controls fitted as standard are :- steam regulator, safety valve, pressure gauge, displacement lubricator, gas regulator and reversing gear

Dimensions (loading gauge) are :- length 280mm over buffers, width 125mm, height 155mm, weight 2.9 Kg (with r/c)

Full radio control is available for both regulator and reversing valve gear

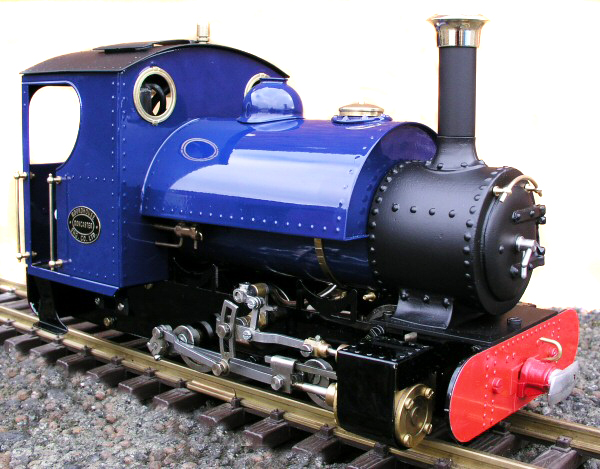

Available in any standard ROUNDHOUSE colour. Pictured here in Blue

The wheels are adjustable between 32mm and 45mm gauge

Also available with insulated wheels.



For any more information please don’t hesitate to give us a bell on 07816 963463



Manual £1275

Radio Controlled £1503
