Lady Anne

Although freelance in design, Lady Anne is typical of a medium sized narrow gauge tank locomotive and borrows design features from many well known locomotive manufacturers. This is an excellent all round workhorse for your railway.

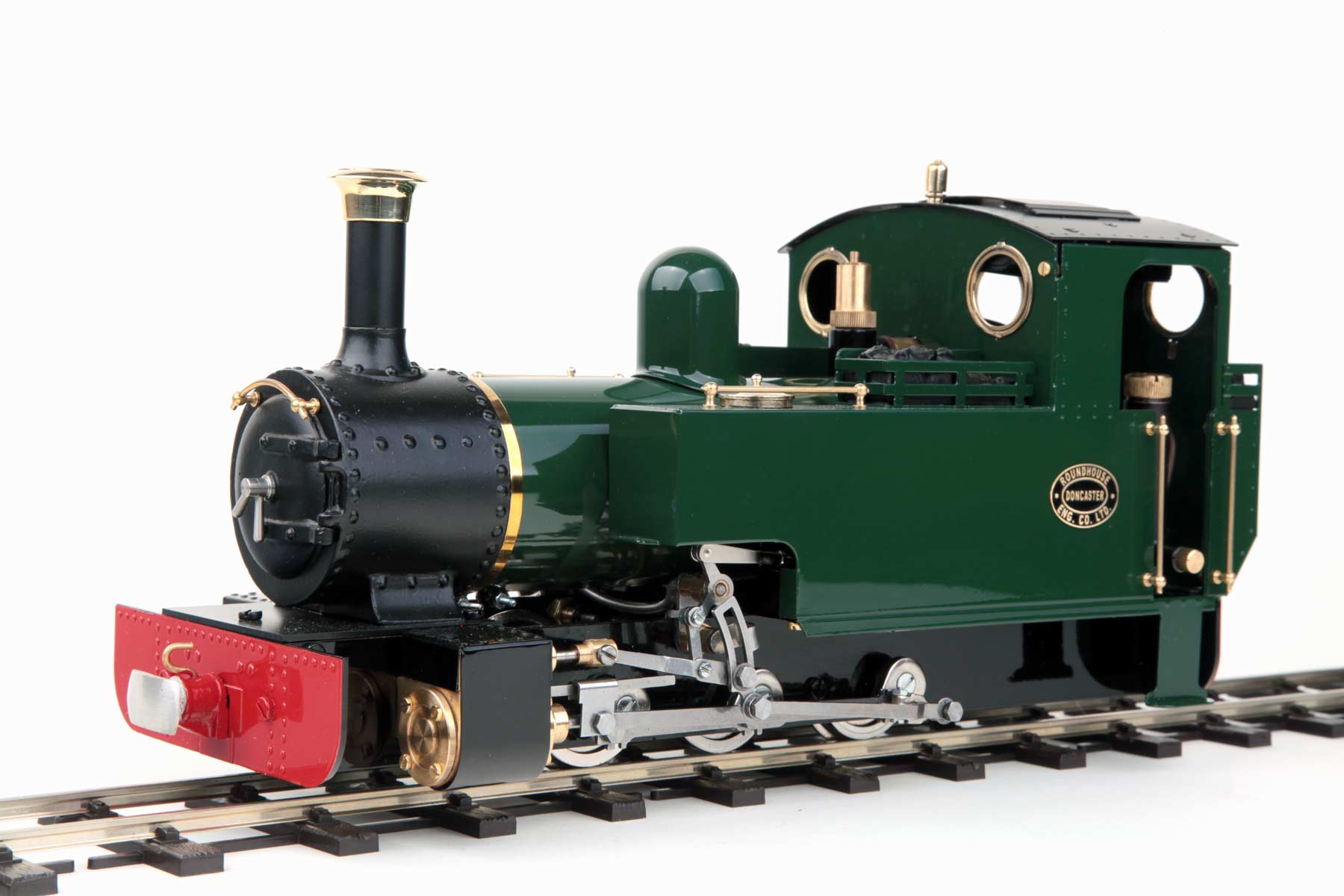

lady anne live steam locomotive garden rail for sale 01

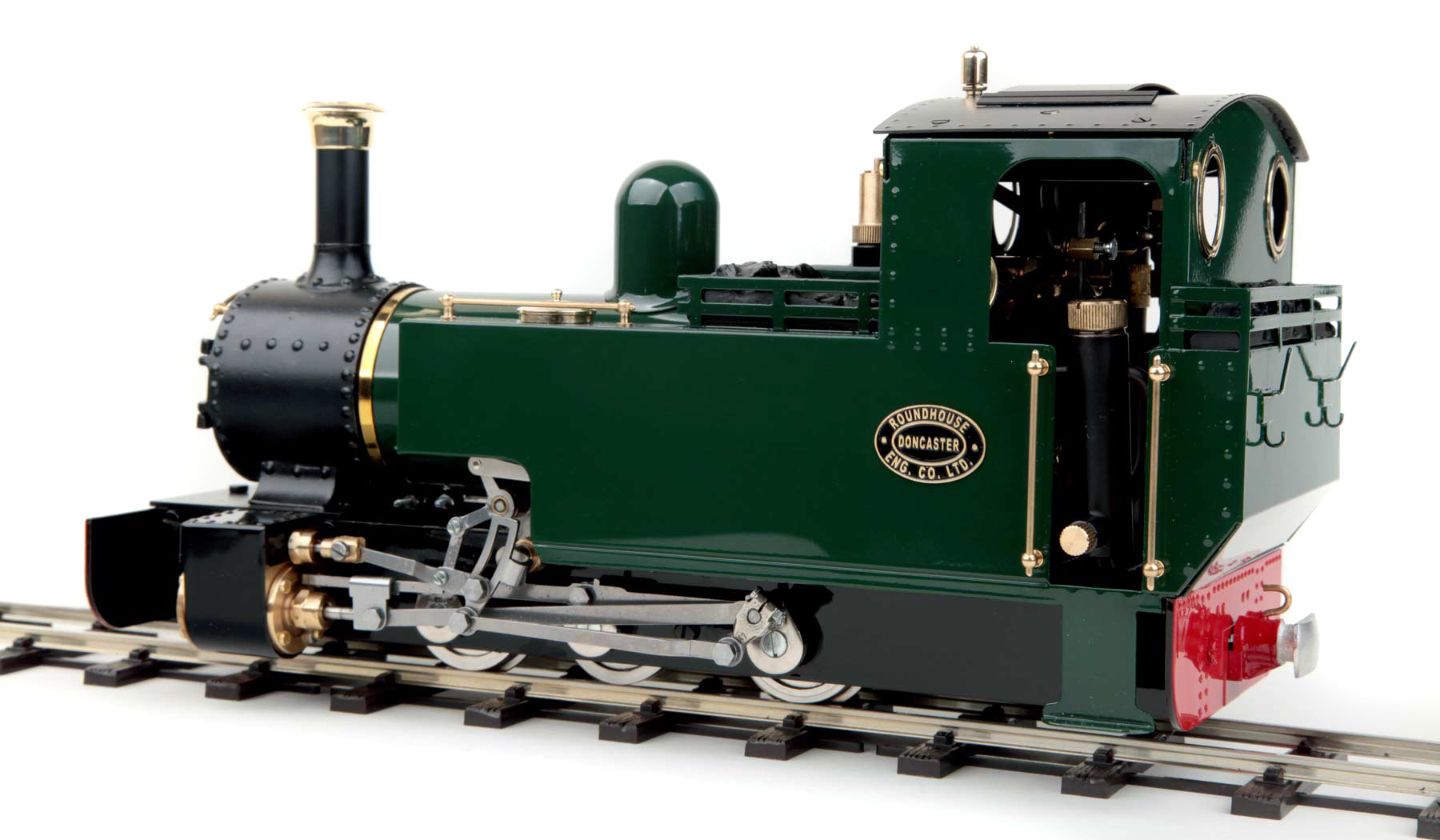

Lady Anne live steam locomotive garden rail for sale 02

Technical specifications for ‘Lady Anne’

0-6-0 outside framed chassis with two double acting slide valve cylinders operated by simplified Walschaerts type valve gear

Exhaust enhancer

Internal gas firing using our ‘FG’ type burner

Controls fitted as standard are :- steam regulator, safety valve, pressure gauge, displacement lubricator, gas regulator and reversing gear

Dimensions (loading gauge) are :- length 315mm over buffers, width 125mm, height 160mm, weight 3.25 Kg (with r/c)

Full radio control is available for both regulator and reversing valve gear

The wheels are adjustable between 32mm and 45mm gauge

Also available with insulated wheels

Available in any standard ROUNDHOUSE colour. Pictured here in Deep Brunswick Green.



For any more information please don’t hesitate to give us a bell on 07816 963463



Manual £1325

Radio Controlled £1503
