Sammie

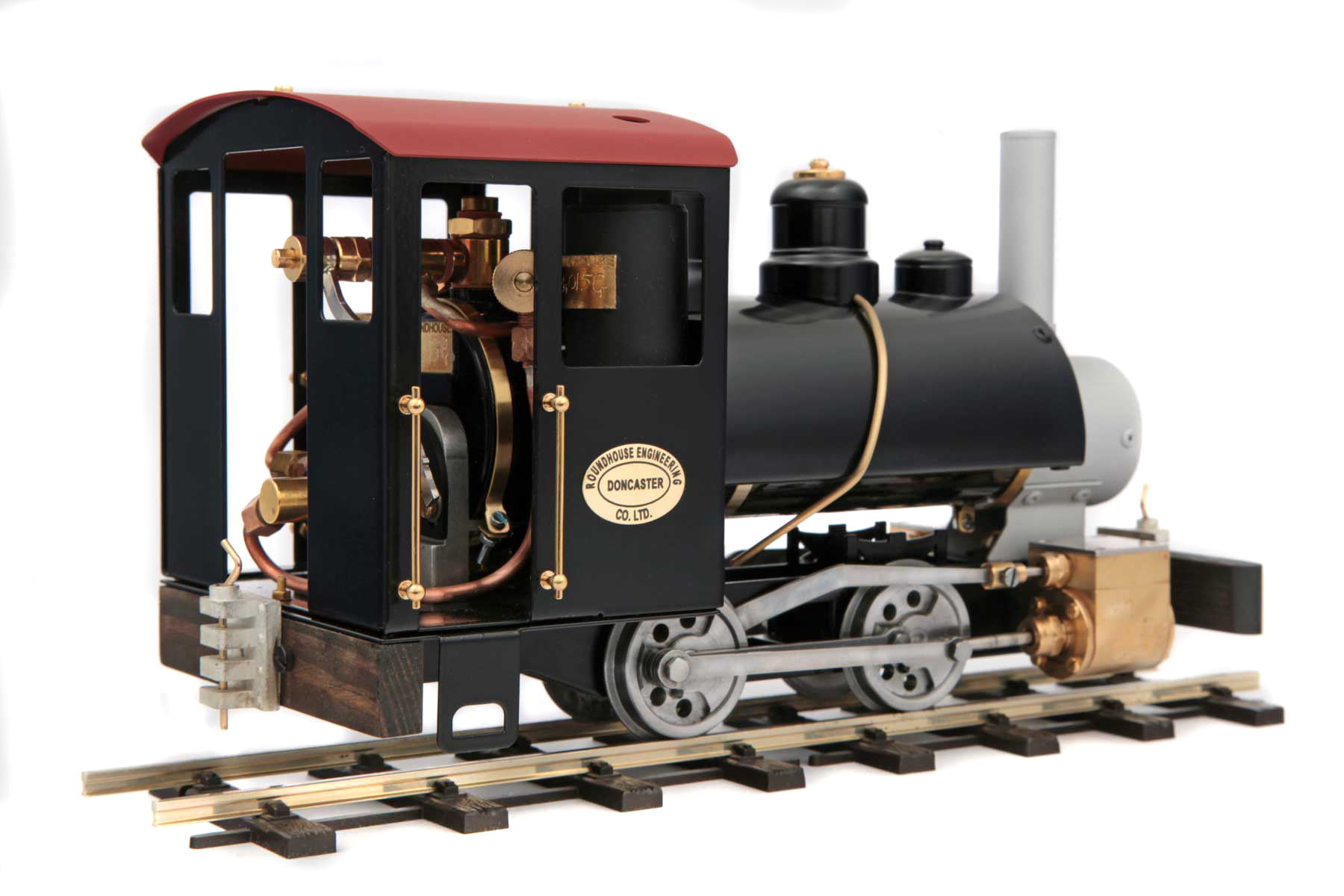

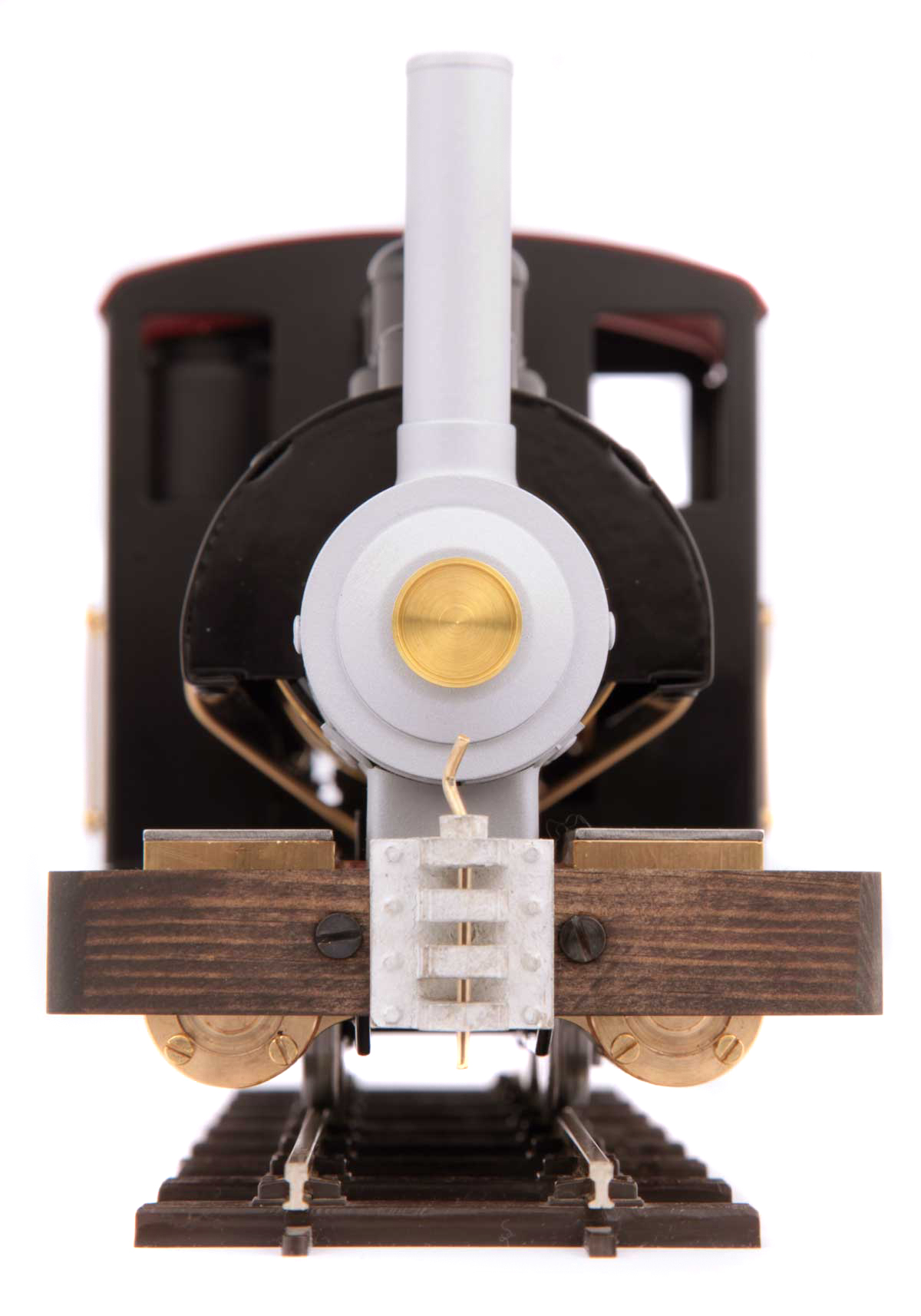

Sammie is the second of our ‘Basic Series’ locomotives. Though freelance in design, he is styled after the many small to medium sized saddle tank locomotives from such builders as Baldwin and Porter . Personalize it to your own requirements with the additional parts and accessories available.

Specification for basic model is :

0-4-0 inside framed chassis with double acting slide valve cylinders operated by slip eccentric valve gear.

Internal gas firing using the ROUNDHOUSE ‘FG’ gas system.

Controls fitted as standard are:- steam regulator, safety valve, displacement lubricator and gas regulator.

Dimensions (loading gauge) are:- length 265mm over buffers, width 118mm, height 145mm, weight 2.1Kg.

Supplied only in black livery with silver grey smokebox and red oxide roof

32mm or 45mm gauge (non adjustable) please state when ordering.

*NOTE* Insulated wheels are not available on this model and a gas filling adaptor is required..



For any more information please don’t hesitate to give us a bell on 07816 963463



Sammie £628
