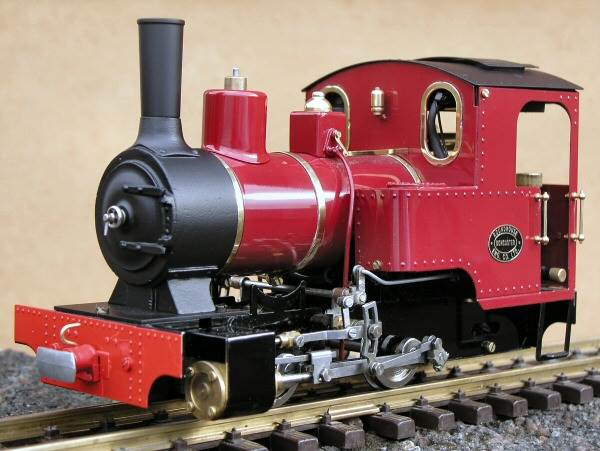

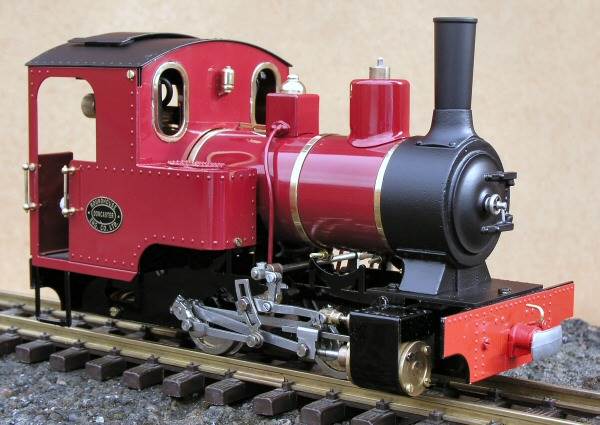

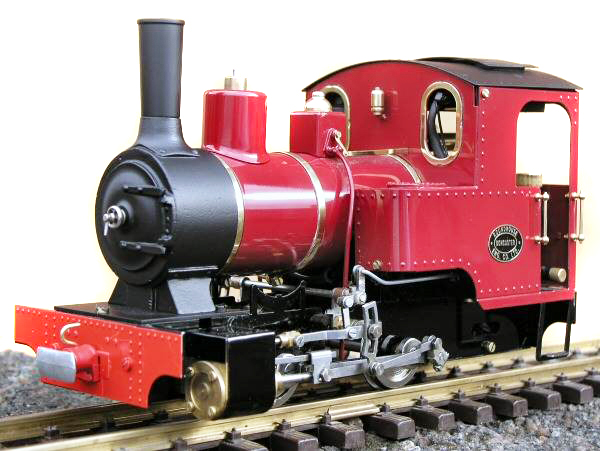

Based on a design by Arthur Koppel and found in large numbers throughout Europe, locomotives were also built to this design by Andrew Barclay in Scotland and found on narrow gauge lines around the British Isles. This really is a locomotive that will look at home on any railway around the world.
Technical specifications for 'Billy'
0-4-0 outside framed chassis with two double acting slide valve cylinders.
Simplified Walschaerts valve gear.
Internal gas firing using our ‘FG’ type burner.
Controls fitted as standard are :- steam regulator, safety valve, pressure gauge, displacement lubricator, gas regulator and reversing gear.
Exhaust Enhancer fitted as standard.
Overall dimensions (loading gauge), length 285mm, width 125mm, height 156mm
Weight 2.90 Kg. (with r/c).
Full radio control is available for both regulator and reversing valve gear.
The wheels are adjustable between 32mm and 45mm gauge.
Also available with insulated wheels
For any more information please don't hesitate to give us a bell on 07816 963463
Radio Controlled £1503
