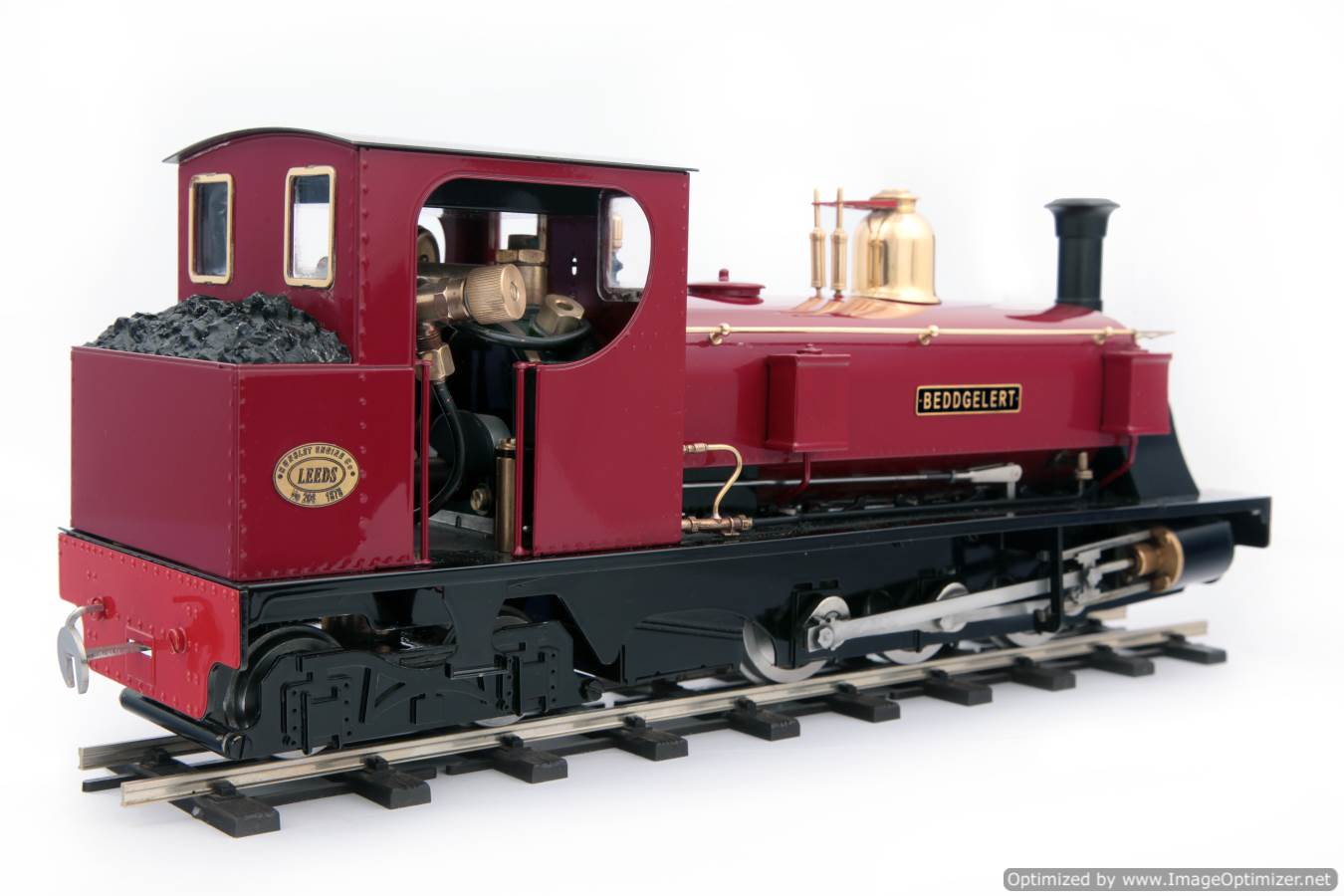

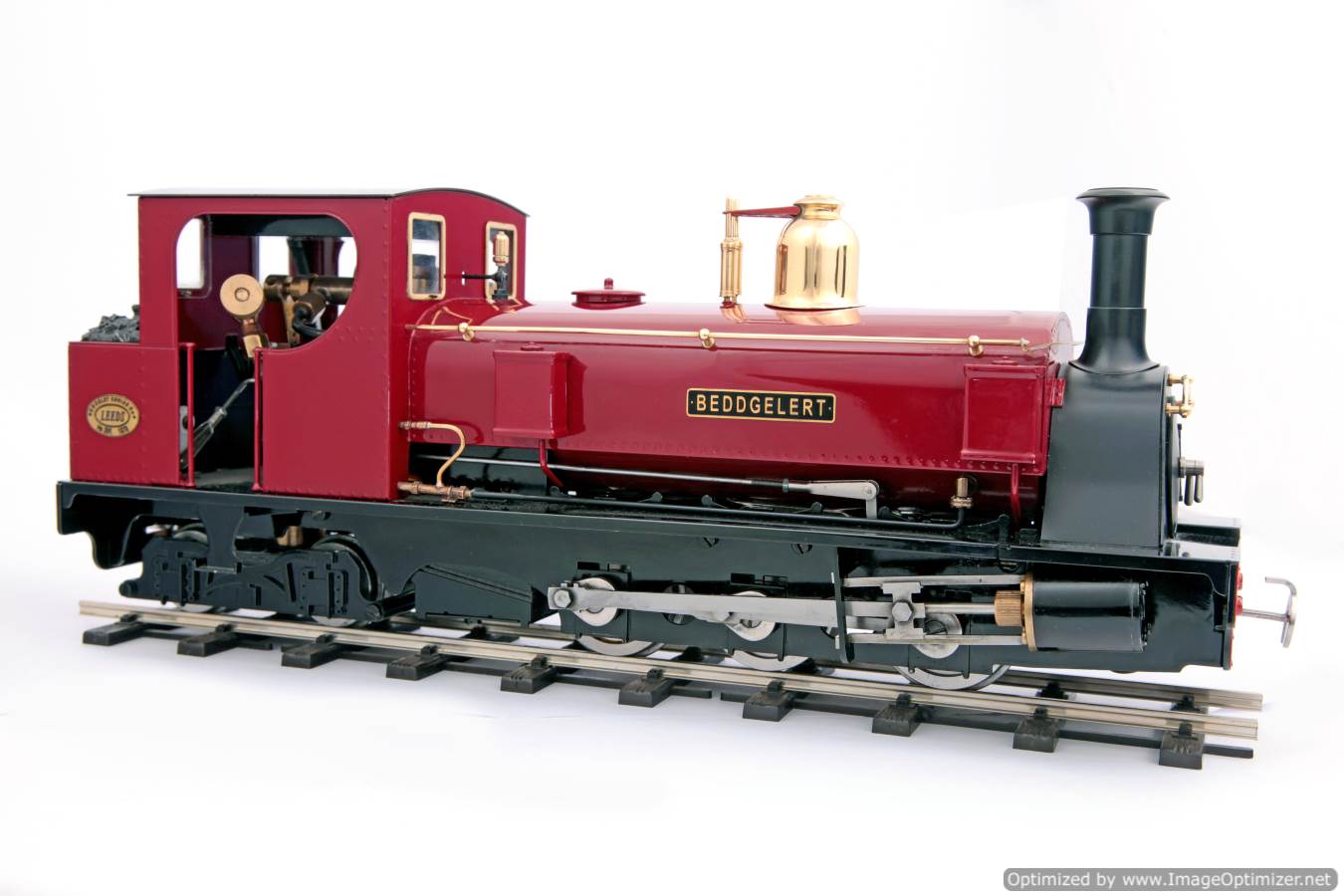

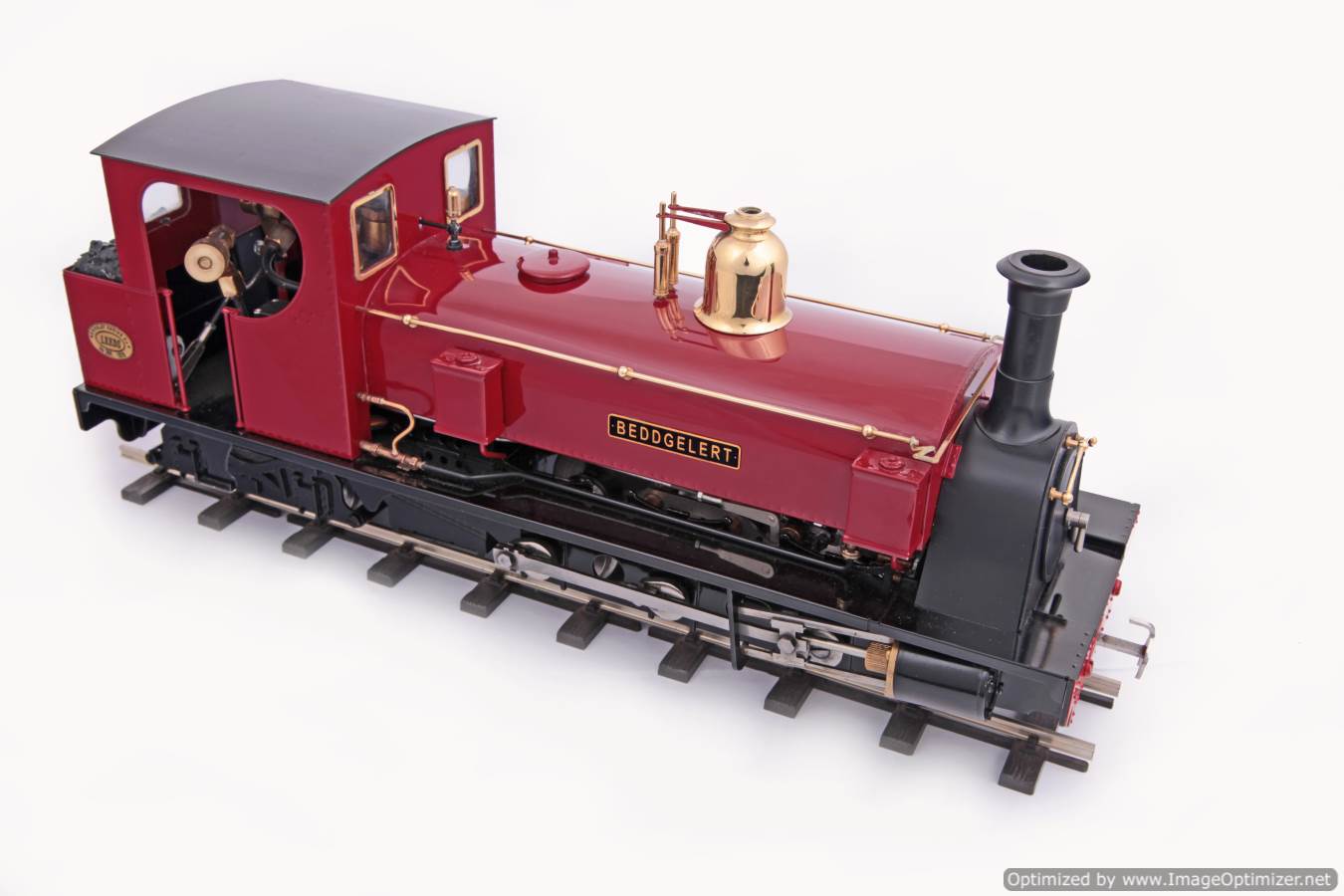

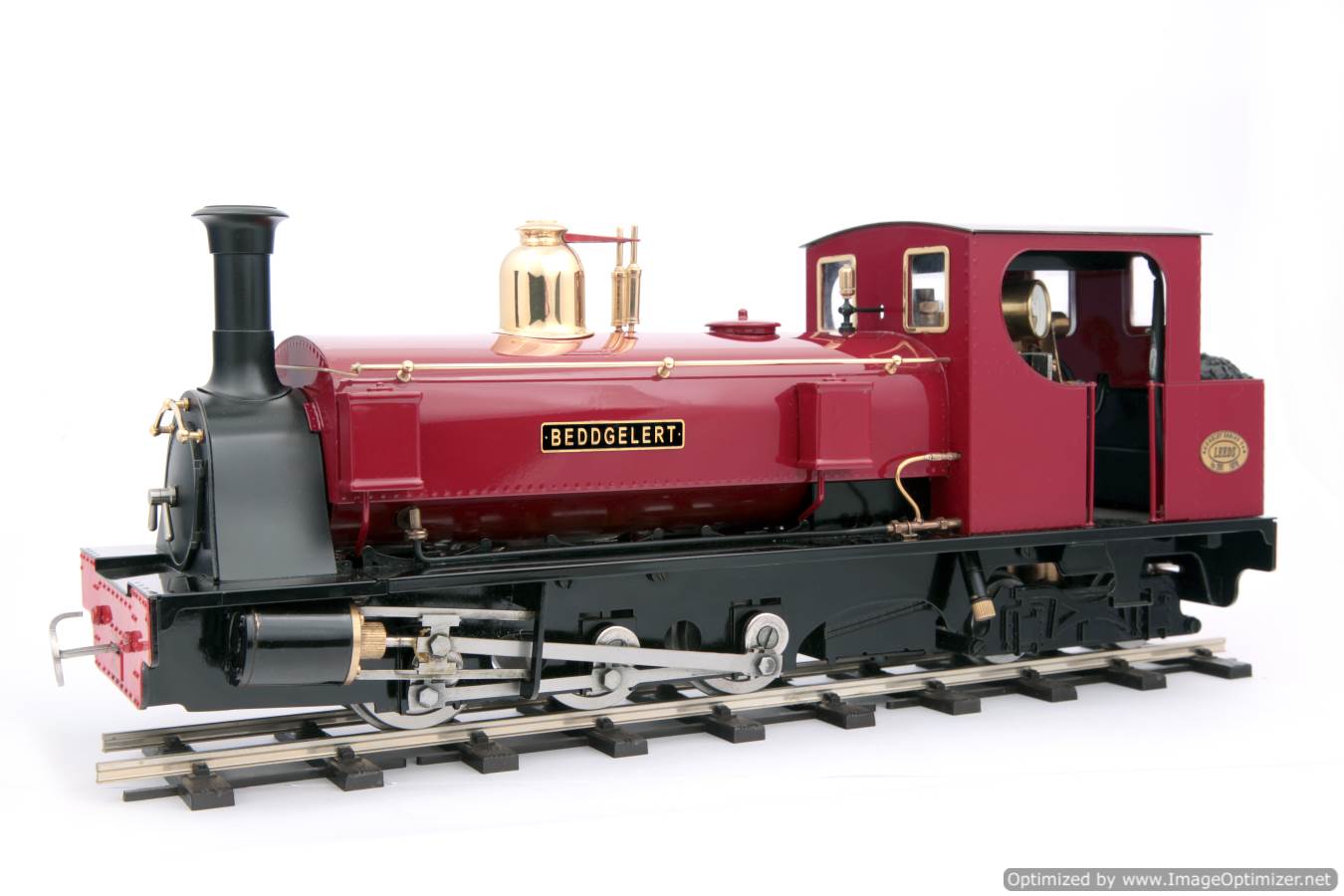

WHR Beddgelert

Beddgelert, the 0-6-4ST was built by Hunslet Locomotive Company Leeds in 1878, to works order number 206. Built for the North Wales Narrow Gauge Railways he mainly worked the Bryngwyn branch. Beddgelert was ideally suited to the heavy freight trains. Unfortunately the engine only lasted until 1906 as it was considered uneconomical to repair and was scrapped after only 28 years of service! Beddgelert is quite a large loco and will require a minimum of 2 foot 6 inch (760mm) radius to operate effectively.







Technical specifications for ‘Beddgelert’.

Internal gas firing using our ‘FG’ type burner.

Outside framed 0-6-4 chassis with two double acting slide valve cylinders.

Water top-up system and water gauge.

Controls fitted as standard are :- steam regulator, safety valve, pressure gauge, displacement lubricator, gas regulator and reversing gear.

Glazed cab windows.

Dimensions (loading gauge) are, Length 385mm over buffers, Width 106mm, Height 140mm.

Weight 4.6 Kg. (with Radio Control fitted).

Full 2.4GHz radio control is available for both regulator and reversing valve gear.

A gauge conversion kit is available separately to allow changing between 32mm and 45mm gauge. Please state gauge when ordering.

Fitted with insulated wheels as standard.

Exhaust enhancer fitted as standard.

Available in any standard ROUNDHOUSE colour.



For any more information please don’t hesitate to give us a bell on 07816 963463



Beddgelert Manual £ 1795

Beddgelert Radio Control £2005
